Fusion ARX Remote: simple, effective and convenient

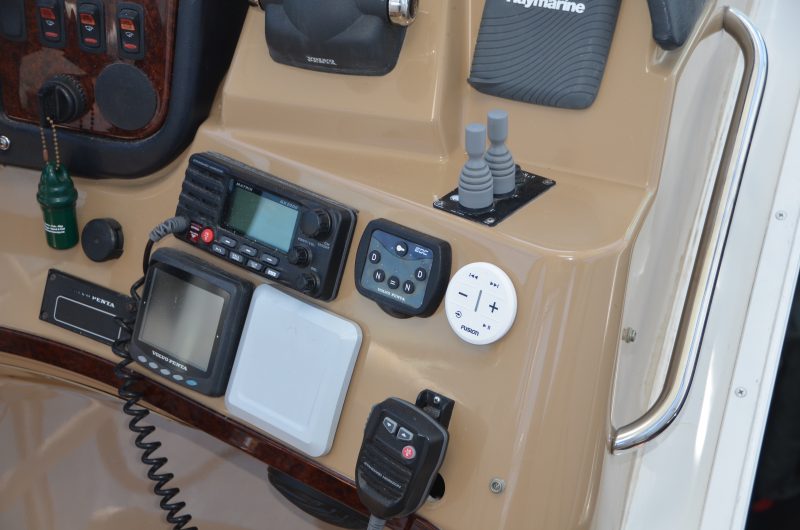

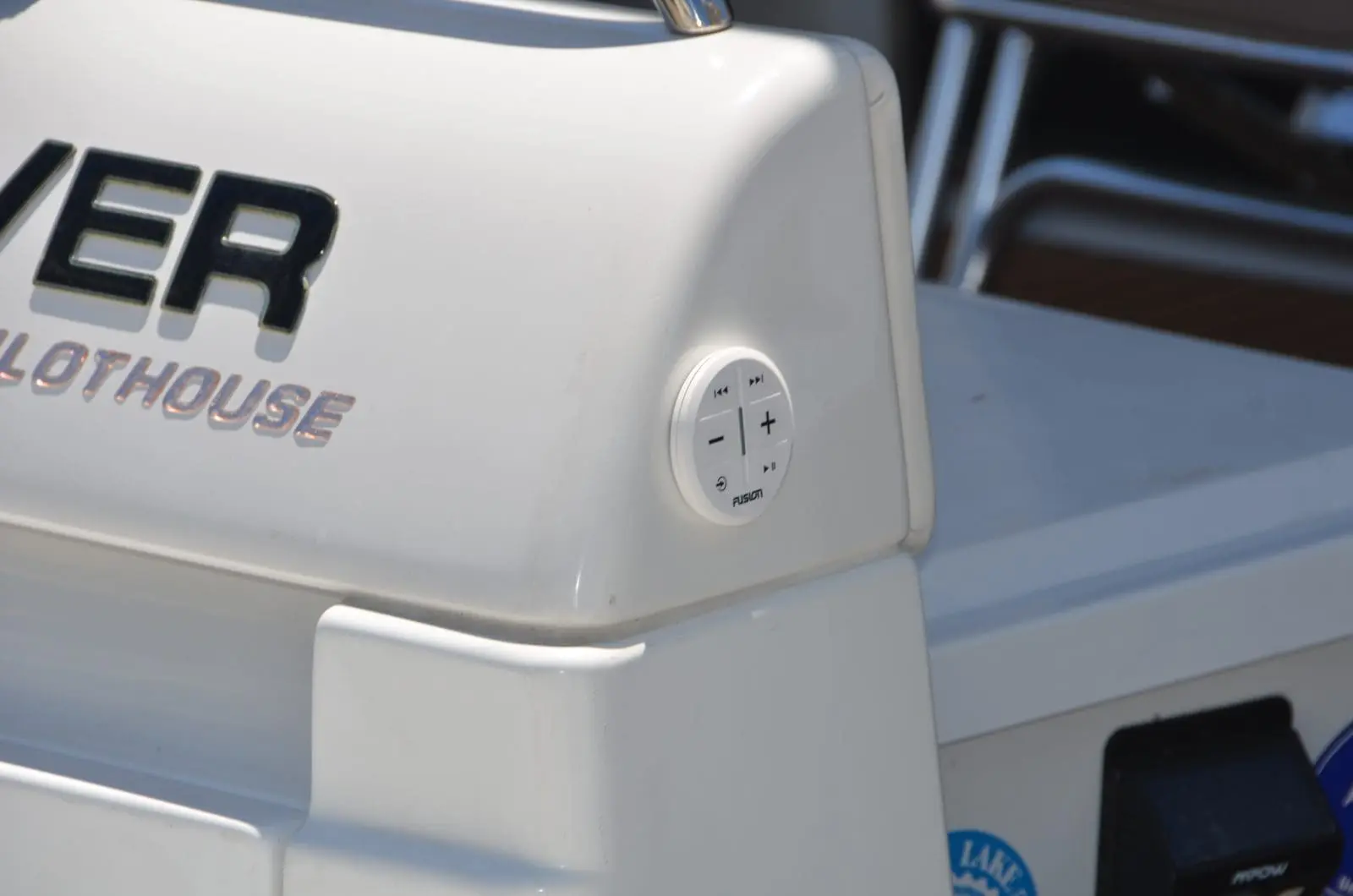

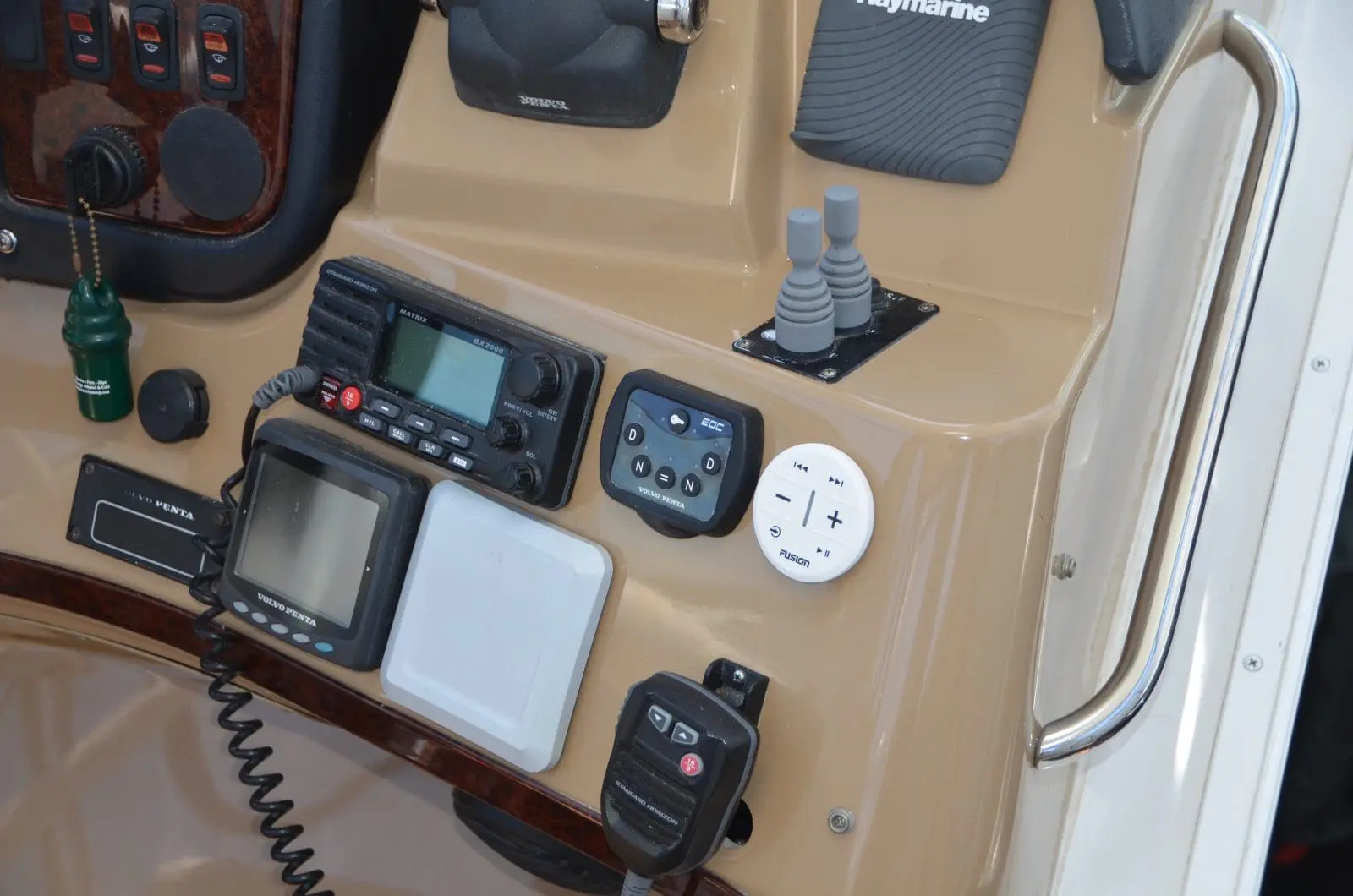

Sometimes you just want to turn down the volume or skip to the next track, and the Fusion ARX remote is the right tool for that job. The remote’s simplicity, size, and flexible placement allow it to be mounted in the perfect spot to control your stereo, or in several such spots.  I now have four of them installed on Have Another Day and this entry will detail why they’re making me happy.

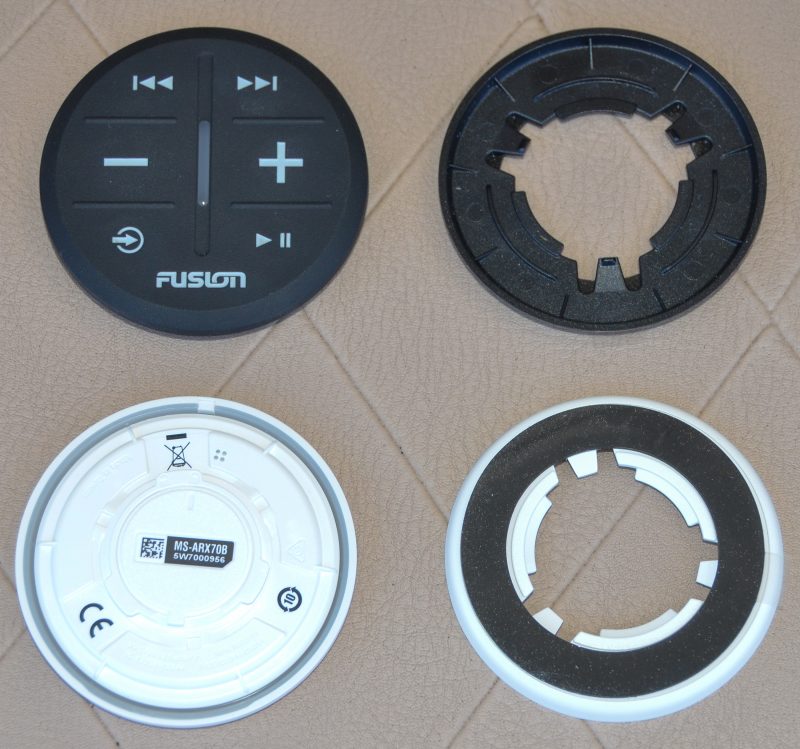

The remote is available in white or black and comes with the mounting ring seen on the right

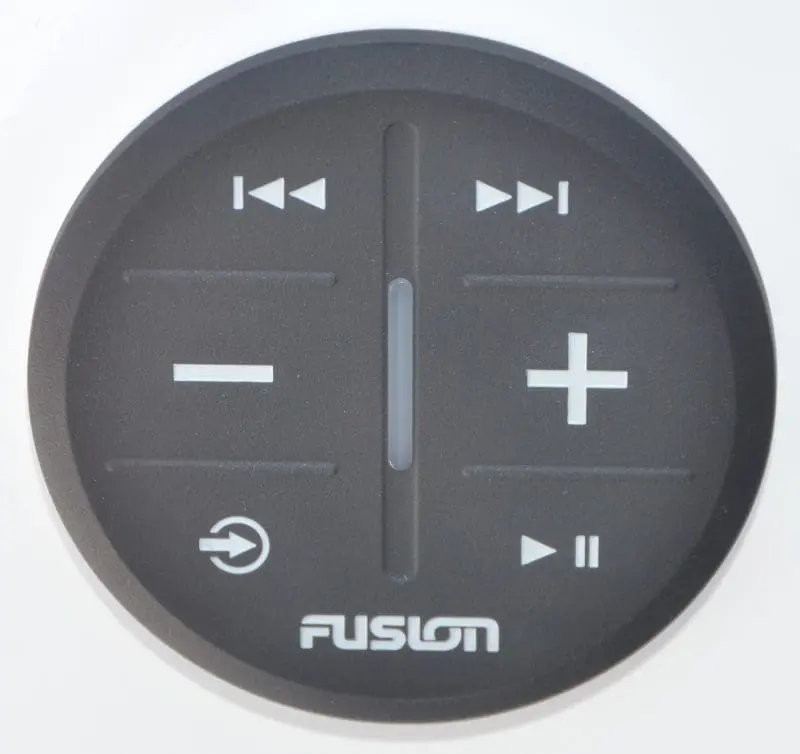

The $50 Fusion MS-ARX70 (Introduced in October of 2018) is a 2.5-inch disc with six face buttons — track back and forward, volume down and up, source, and play/pause — and it’s only 3/8-inch deep.  Each one can be set to control the volume of one zone or all zones.  The remote uses Garmin’s ANT wireless protocol with a 10 meter / 33 foot range to communicate with many compatible Fusion head units: MS-RA70, MS-RA70N, MS-RA70NSX, MS-BB100, MS-AV755, MS-UD755, WS-SA150 (StereoActive), PS-A302 (Panel-Stereo), RV-IN1501,  and MS-RA770.

The remote is powered by a single coin cell battery that will last around 1 year and it’s rated IPX7 (can be submerged to 1-meter for 30 minutes) water resistant. It can be attached to most any surface using the included mounting bracket’s strong adhesive ring, but I’ve also found it useful to remove it from the bracket (by turning about 120-degrees) and carry it with me around the boat.

The ARX70 is great because it does a few things well, and does so most anywhere you want.   It’s also extremely simple and intuitive to use.  I’ve noticed visitors easily using the remote.

While it doesn’t replace the full functionality of the head unit, the FusionLink app, or an MS-NRX300 remote with full display, it does give you a quick and easy way to turn up a favorite song, skip to the next track or turn down the volume when you need to hear something else.  And that, I think, was the design goal.  At $50 you can afford to sprinkle a few of them around — each head unit can connect to up to four of them — so that they’re just where you need them when you need them.



Similar Posts:


Aquatic AV, doing what Fusion hasn’t?
October 24, 2011

Fusion Marine Stereo 2013, great but confusing!
June 21, 2013

Fusion Marine Stereo 700 series, holy mackerel!
October 4, 2011

Fusion BB300 black box stereo & a peek into 2015
December 7, 2014

Ben Stein

Ben Stein

Publisher of Panbo.com, passionate marine electronics enthusiast, completed the Great Loop in 2017.

3 Responses

  1. Lance Chalmers says:

    Hey Ben there is no limit on how many remotes you can pair to a stereo.

  2. Bill Kearney Bill Kearney says:

    Shame the mute function doesn’t work per-zone. It silences the source, not the paired zone. So any other zones listening to that same source are silenced too.

    But otherwise, yeah, for $50 they’re handy.

  1. June 3, 2019

    […] four ARX-70 remote controls (detailed review here) spread around the boat, quick changes to music or volume are right at hand.  In addition, the […]
