NMEA 2000 realities, the pro installer view


The day after the annual National Marine Electronics Association (NMEA) Conference ended, the Association ran its new Advanced NMEA 2000 Installer Certification course in the same Naples, Florida, hotel and let me sit in. I learned about numerous N2K subtleties and also about how NMEA trainings have evolved, but let’s start with a fact that says a lot about who the overall organization is: The course creator and trainer Mike Spyros (seen twice above) is not only an exceptionally knowledgeable and seasoned electronics technician, he’s also the incoming chairman of the NMEA Board…

NMEA_Advanced_NMEA_2000_student_hand-out_cover_courtesy_NMEA.jpgIn fact, if you check the NMEA Instructor list, you’ll see that they’re all deeply experienced marine electronics installers and that certainly includes outgoing Chairman Johnny Lindstrom. The idea that’s been emphasized in recent years is that it takes real experience to best teach the core skills of doing complex installs correctly in the first place and troubleshooting those that weren’t done right or somehow fail in the field. And notice how the concept extends to the Advanced NMEA 2000 Network Course certification; in addition to passing the test, a trainee must also document at least one year of field experience (just as the USCG wisely demands proven underway experience on top of its operator license exams).

NMEA_Advanced_N2K_CAN_Signaling_states_diagram_courtesy_NMEA.jpgSo while the snippets from the course handout seen here may look like engineering theory, they actually illustrate the basic CANbus digital data signaling technique that underlies NMEA 2000 and thus can help a technician succeed at advanced troubleshooting. The diagram above shows the two volt DC difference that defines CANbus data bits (and also how it references to 2.5v instead of 0v to avoid noise issues), and the image below shows how those bit signals can look on an oscilloscope when things aren’t right.


While the course handout is just a copy of the PowerPoint presentation, a lot more information and relevant anecdotes were supplied by the instructor. Under my paper copy of this “bad” oscilloscope image, for instance, I scrawled “cause = compass messed up by nearby lightning” because it was Mike or one of his team at Electronics Unlimited in Fort Lauderdale who used the scope to hunt down the network culprit. I was pleased to hear that he rarely sees issues with a properly installed N2K network unless lightning gets involved, or someone damages the cabling, or a network device suffers extreme water intrusion (which itself is usually caused by a subpar install).

There was also a lot of valuable feedback from the trainees, most of whom had much more than a year’s experience in the field. The general consensus was that NMEA 2000 is quite robust though the real interest focused on why problems occur. Technical dealers (as they are sometimes called) are the last link between manufacturers and the owners of complex commercial and recreational electronics systems; stuff working or not working can make or break their day, sometimes even their bank accounts.

Of particular interest with the messed up electronic compass was that the large N2K network it was on did not simply fail. Instead it purportedly powered up OK, but then developed data problems over time, which makes sense when you understand another CANbus/N2K nuance called Fault Containment. The spiky voltage differentials seen above may have only caused occasional faulty data frames, but each device counts the faulty frames it has transmitted until a certain threshold when it must gracefully take itself off the network. The rest of the network gets healthier, but all of a sudden you may have no Heading (unless a backup sensor has been set up).

Though I’ve seen such things happen — time to reboot the network! — I understand the behavior better now, and also how to find the cause. And if this sort of technical nuance is not your cup of tea, isn’t it good to know that pro installers are teaching each other about it?

Advanced NMEA 2000 course hands on tools_cPanbo.jpgThe second half of the one-day Advanced N2K course was 100% hands-on, with small groups of students tasked with building a 17-device N2K network, evaluating it before and after power up, setting up multiple same type sensors like dual compasses, and finally documenting the system. Each of the four tables had two MFDs loaned out by a different one of the four major brands plus a mixed brand selection of instrument displays and sensors. A lot of hardware and software tools were also provided. For instance, the for-testing-only breakout cable seen at lower right above was used with the orange voltmeter to check for the 60 Ohm resistance seen across a properly terminated backbone’s data wires, among several other tests.

We’d already received extensive instruction on using the blue Maretron N2KMeter that morning — it does a lot — and both the Maretron USB100 and the Actisense NGT-1 N2K-to-USB gateways went on the networks because each of their associated N2K diagnostic programs has valuable unique features. (Both gateways and the N2KMeter were nicely available for students to take home at steep discounts.)

NMEA_trainer_Hugh_Lupo_cPanbo.jpgSometimes adding a little levity to the somewhat chaotic scene were several other NMEA trainers who may lead the course on future dates. Seen above are John Barry of Technical Marine near Lake Michigan and Hugh Lupo of New England Marine Electronics on Long Island Sound, both of whom have had a lot to do with bringing NMEA training up to its current impressive state, I’m pretty sure. Did you know, for instance, that there are now combined ABYC/NMEA 4-day sessions?

At any rate, Hugh took some time out from demonstrating how not to make N2K connections to tell me how much he enjoys teaching and how he’d improved his skills by honing down some of his vast knowledge to the point where his patient spouse could understand it. He also festooned one of those N2K multiports with four backbone terminators (aka 120 ohm resistors) and gleefully used it to mess with the critical impedance on the student networks.

Advanced_NMEA_2000_course_hands_on_troubleshooting_cPanbo.jpgSo you can tell by the healthy looking oscilliscope screen in the photo above that the devilish Mr. Lupo was not doing his demo. Even on their own, though, students did find and fix various (sometimes self-created) issues, particularly when the individual table networks were bridged, and setting up multiple same-type sensors sometimes got interesting. At the Raymarine table, for instance, we could not get the MFDs to see and select between two Heading sources, though the system usually failed over nicely from one to the other. (I’ve seen similar on my test system, but will add that Ray has step-by-step improved its N2K management a lot in recent years.)

The course went into detail about N2K Source Addresses and Device/PGN Instances, and also how the early standards documentation wasn’t crystal clear about how manufacturers should use them. Mike made the point that it’s important to keep up on known problems to avoid wasting your own and customer time, and one added benefit of these pro gatherings is how they encourage future networking among all involved.

While all the course participants seemed to agree that many early N2K issues are history — and they’ve always tended to surface much more in big networks than smaller ones — this year’s Conference also hosted an 8-hour by-invitation-only “PlugFest” during which engineers gathered to plug their company’s N2K devices together and look for problems. Some were identified, I heard, and more PlugFests are planned.

Kevin_Boughton_teaching_NMEA_Autopilot_Seminar_cPanbo.jpgNMEA training covers much more than N2K and I appreciated an info-filled 75 minute Conference seminar about autopilot installations delivered by NMEA instructor Kevin Boughton. Kevin is a partner at Midcoast Marine Electronics just down the road from me — I know where to go if Gizmo’s PTO driven AP/steering system ever goes awry — and was also just chosen to join the NMEA Board. The occasional critics who insist that NMEA is some sort of cabal of fat cat electronics manufacturers really should observe who actually runs the organization (a point I’ve tried to make before).

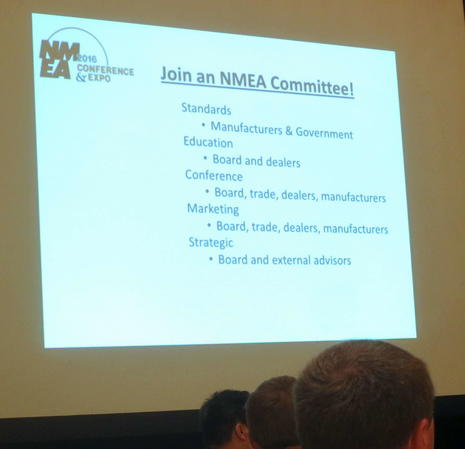

NMEA_committee_member_types_cPanbo.jpgBut NMEA has many constituents, as suggested by this call to join volunteer committees. Of course the manufacturers are critical to the standards making process, along with representatives of interested bodies like the USCG and FCC. And, by the way, I’m happy to report that the OneNet standard is finally in draft mode and about to go through manufacturer beta testing (volunteers invited).

Bob_Breum_aboard_his_Nordhavn_43_Wanderlust_cPanbo.jpgEven a semi-regular boater is welcome at NMEA and one of my classmates was Bob Breum, the owner of the Norhavn 43 Wanderlust whom I had met at the Riviera Beach TrawlerFest last January. Bob has not only dug deep into the boat’s systems and figured out many improvements — the Wanderlust wheelhouse below — but he has also broadened his formal education (bio here) and I believe he’s enjoyed the whole process.

It was Bob who first explained to me why the N2K rudder angle data coming out of Gizmo’s Simrad AC12 autopilot is understood by Simrad N2K displays but not others. He had initiated a thorough Furuno support forum thread on the subject — which is also a good example of how an informative customer tends to get informative responses — and if he ever hangs an “Electronics Troubleshooting” sign on that Nordhavn, don’t hesitate. And it was no surprise that Mike Spyros also knew about the rudder angle issue. Simrad’s using PGN instance #255 was one of those early mistakes that’s fixed now but hard to work around. .

But I will leave the last word to another of my classmates, Kevin Kriegel of Larsen Marine. While sharing an Uber to the airport I learned that marine electronics is largely an enjoyable sideline in Kevin’s overall electronics career (bio here), and here is his take on NMEA 2000:

I’ve work with many protocol “standards” in numerous industries and I’d say that N2K is among the most robust and fault tolerant I’ve seen. There may be issues with some aspects of the specification but they are minor and the certification process is in a continuous state of improvement. The N2K protocol is one of the main reasons I choose to work in the marine industry!


Similar Posts:

The very unhappy customer, a phenom
January 12, 2006

Geeks versus the evil M.E. empire, part 1
September 6, 2005

Impedance-driven NMEA 2000, & SimNet gets a “Noise Filter”
June 7, 2011

NMEA 2000 Bridges #1, they’re coming
December 2, 2010

Ben Ellison

Ben Ellison

Panbo editor, publisher & chief bottlewasher from 4/2005 until 8/2018, and now excited to have Ben Stein as very able publisher, webmaster, and editing colleague. Panbo is going to the next level in 2019 and beyond.

10 Responses

  1. Ben Ellison Ben Ellison says:

    A portable (and slick) way to scope a NMEA 2000 network is with a Fluke ScopeMeter. CANbus instructions here:

  2. Just curious, Ben – do any tools exist for N2K networks that would mimic the Time-Domain Reflectometer (TDR)that is so handy for troubleshooting RF cabling? It sure is a handy tool for spotting flaws – even small ones – that can cause SWR and/or IM issues.

  3. Ben Ellison Ben Ellison says:

    Hi Hartley, I’ve never used a TDR ( https://goo.gl/yVhIYH ) but the UK company Warwick exhibited a diagnostic system at NMEA that can locate issues on an N2K network by distance (and many other things):

  4. Ben Ellison Ben Ellison says:

    There once was talk of having the NMEA Conference become part of the annual IBEX trade show, which sounded good to me. I wonder if that idea might rise again now that — holy cow — the owners of METS own 50% of IBEX:

  5. Hi Ben,
    Warwick sure has some powerful tools – looks like something anyone who does large system installation/debugging would need. I didn’t see a TDR-like function on their website, but perhaps it’s something coming soon.
    We called TDRs “cable radar” because that’s how they work – they send out a pulse and display the magnitude, sign (impedance mismatch) and delay (distance) of echos of that pulse graphically. With it’s branching structure, an N2K network would be tricky to interpret, but I bet one could home in on a trouble spot fairly quickly with some experience.

  6. Anonymous says:

    Ben: Was there any discussion at the workshop/training to support 24V DC (vs 12V DC) power on the N2K buss? Boats with 24V power need to install DC-to-DC converters, a 12V battery bank or some other alternate DC source to supply 12V power to their N2K buss.
    Given most newer electronics support a range of voltages, it would be great if NMEA would start to think about supporting those of us with 24V backbones.

  7. Ben Ellison Ben Ellison says:

    Anon, it might have discussed elsewhere at the Conference but this installer/technician training was about N2K as it is, and I think that makes sense.
    24v N2K would be nice — it would also double the amperage available to small devices on the network — but it’s a tall order. How would NMEA deal with all the N2K devices designed for 12v and already out there?

  8. alex puskar says:

    Great Course, I would like to find out when they offer it next. Hugh taught me everything I know about N2k back at the International Yacht Resto School in Newport. Looks like it was a great event.

  9. Ben Ellison Ben Ellison says:

    Alex, it looks like the next one scheduled is on Long Island November 18:
    That course may well be lead by Hugh, given the location, but NMEA could tell you for sure.

  10. So, lovely NMEA 200, first time setting up… I somehow missed the 12v restriction on my 24v system and hooked it all up (to the 24v). Trying to figure out the damage. Brand new Garmin 1222xsv and airmar 800 DST connected up. Garmin seems fine, but no info coming from the airmar. Have I destroyed it? Any thoughts?
