Cruisair AC unit extraction, quality Wera tools helped

How different are boats, boaters, how we boat, and where we boat? On the very day that Ben Stein despaired about Have Another Day’s South Florida air conditioning addiction, I proudly humped this old Cruisair AC unit off Gizmo with no replacement plan. While I think that not needing AC is a feature of our cold-water marina-free cruising style, the sense of accomplishment actually arose from a challenging extraction process. And that would have been much harder without some particular hand tools that may be useful to a wide variety of boaters.

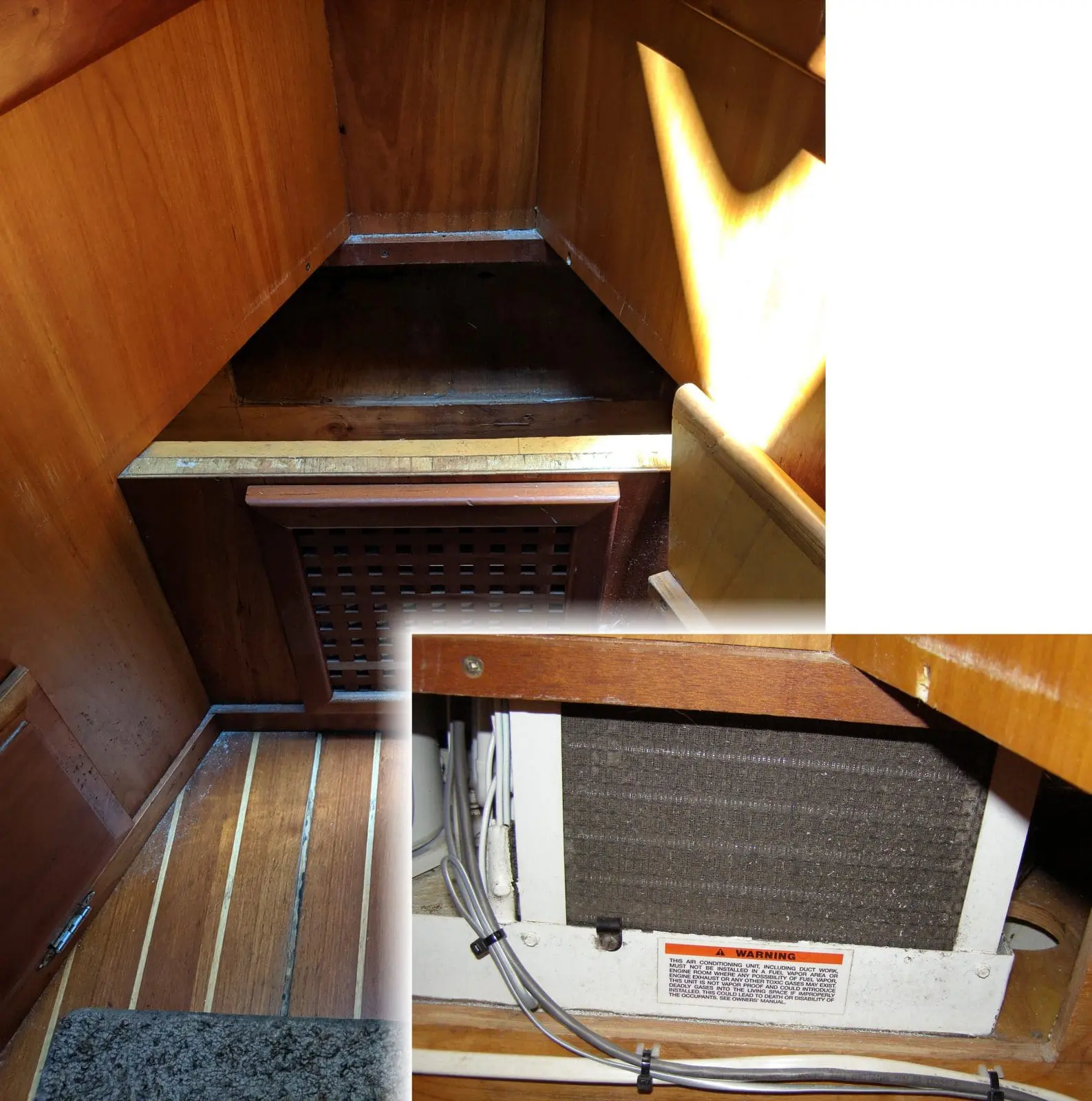

First I’ll explain the problem. I’m fairly sure that the self-contained Cruisair 12,000 BTU SXR12 (data sheet PDF) was installed by Covey Island Boatworks while finishing out Gizmo’s  Duffy 37 hull before her 2000 launch (as the fourth owner it’s hard to be definite, though I’ve acquired install forensic skills). And as I’ve come to expect from those Lunenberg craftsmen, it was neatly fitted deep under the forward vee berth. In fact, the whole unit likely went through those two hatchways visible in the right-hand photo — which also form a sound-deadening chart storage compartment — and was meant to come out that way for repair or replacement.

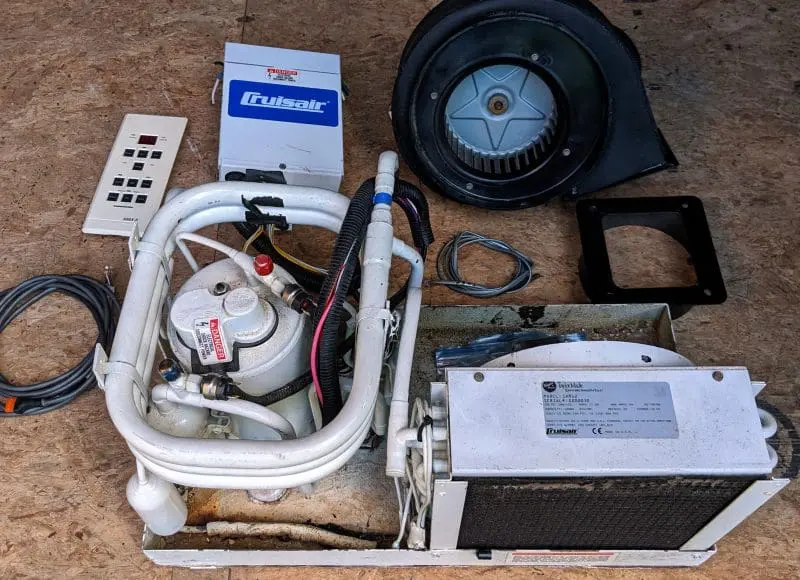

But at some unknown date, someone substantially blocked the Cruisair exit by installing a Lewmar bow thruster. I greatly appreciate that thruster — and install stuff happens — but how could I remove the AC unit without taking apart the light, strong, and lovely joiner work, or by removing the Lewmar? Well, dissembling the Cruisair in place seemed like it might work, but I didn’t know for sure until it did, and that meant removing all the parts seen in the top photo and also separating the heavy condenser from the base pan (which I reassembled onboard for the move ashore).

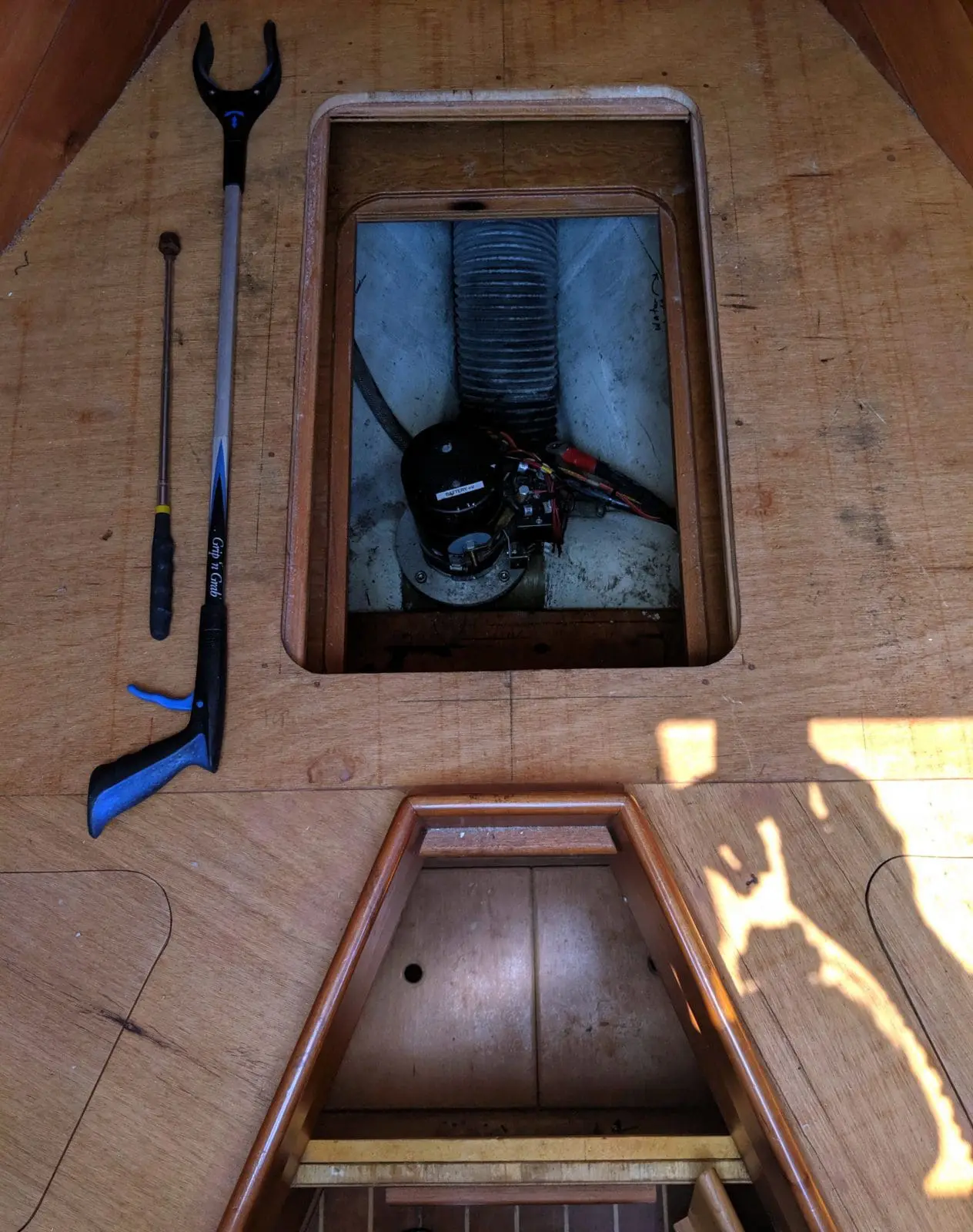

The extension magnet and grabber seen at right above were helpful accessories as I often dropped tools and fastenings (and curses) into the bilge while reaching awkwardly, and usually blindly, into the tight AC/thruster compartment. But the critical tool was a somewhat unusual 3.5-inch bit ratchet wrench.

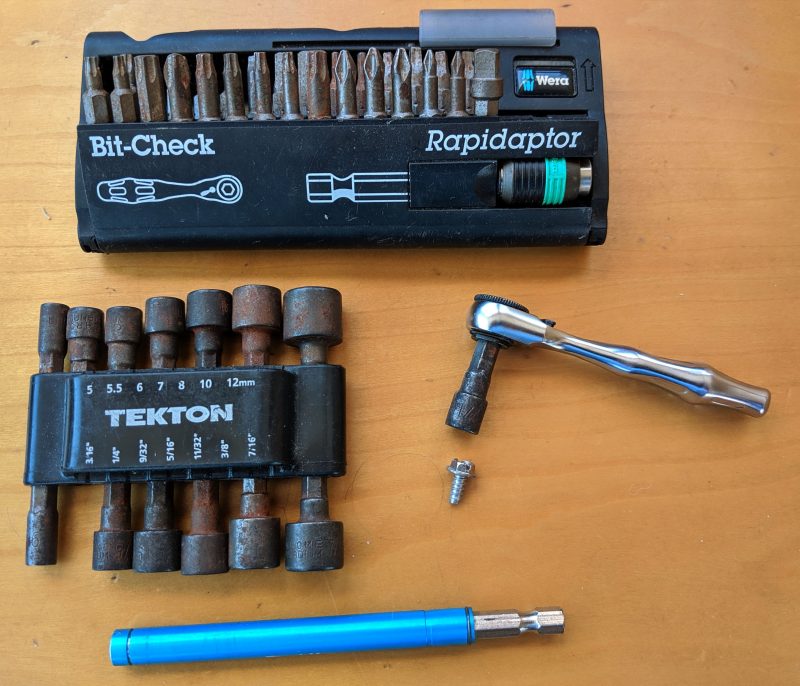

The key extraction tool was the little Wera Bit Ratchet included in the Bit Check kit.

Many years ago, looking for help with tight boat work, I splurged on that Wera Zyklop Mini Bit-Check Set with the little ratchet included, and it rapidly climbed high on Gizmo’s most frequently used tool list. And it’s never failed, including the miniature switched ratchet mechanism, though it even has extra fine-pitched teeth so you get more work out of short swing arcs. (As you may know, the ratchet switch is usually the first thing to go with “bargain” level wrenches).

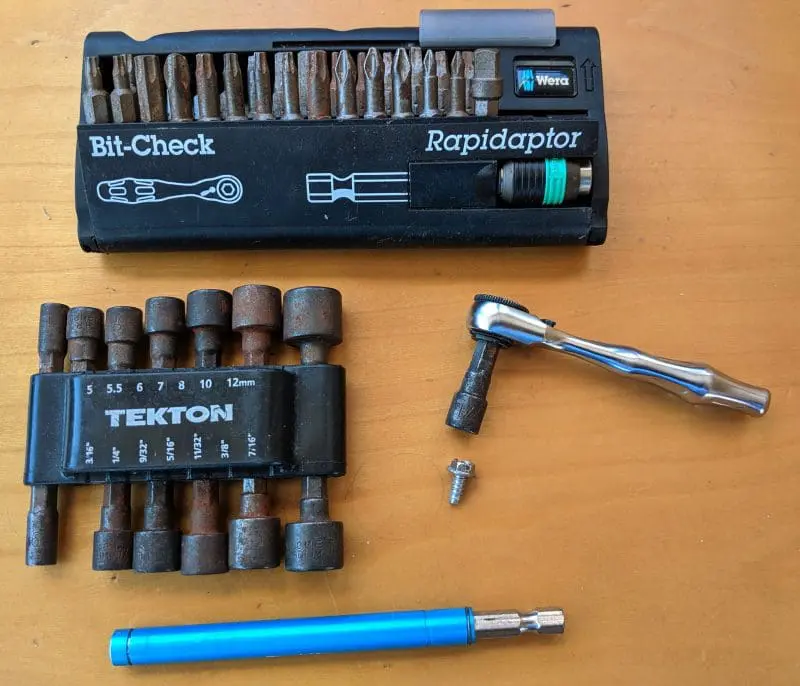

Disassembly of the Cruisair involved lots of little sheet metal screws that I often could not see, even with my head and headlamp in the hole. But with one hand I could feel many out, engage the mini ratchet, and break them free (while two hands and bit extensions worked in other cases). As shown above, I have a set of Tekton nut driver bits with the universal 1/4 inch hex shank that fits the Wera mini ratchet (and many other bit driving tools). The combination, incidentally, is also excellent for hose clamps and many other common boat repair/install tasks.

Come to think of it, the mini ratchet already made Panbo for antenna install heroics.

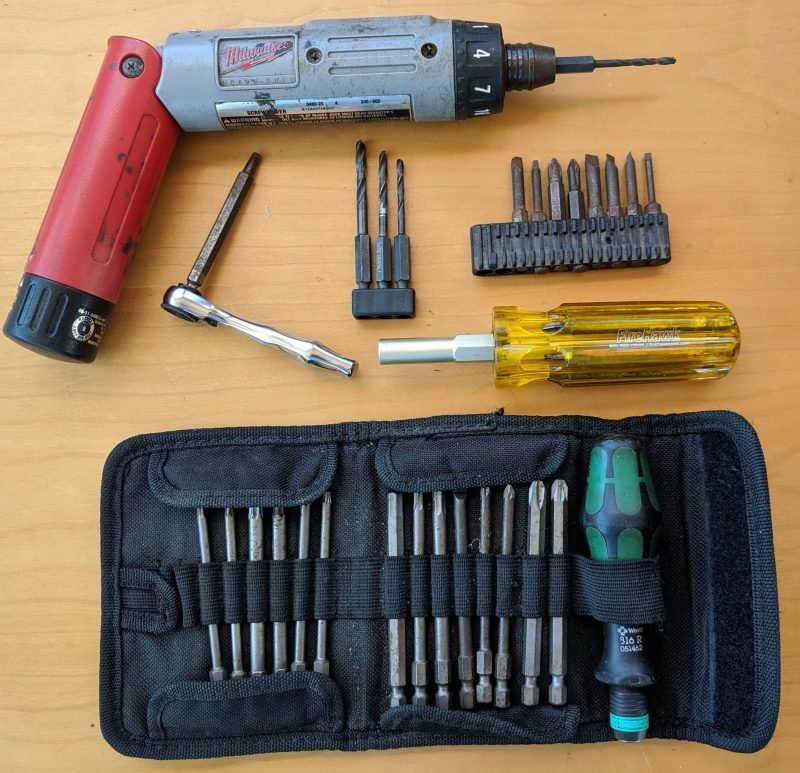

More favorite boat bit tools, Wera Kraftform screwdriver included

I think that the Wera “Rapidaptor” included in the Bit-Check kit was also my first experience with the quick change bit holders that are now common, and with good reason.  That Wera KK 60 Rapidaptor screwdriver kit is also on my highly used list along with the quick change Milwaukee power driver I favor when there’s room to use it. Also included in the photo is a FireHawk Picquic multidriver because — though bit changes are slower — it has exceptionally good hand feel, has easily survived the Gizmo school of hard knocks, and can also share all the screw bits, nut sockets, and even bit drills a well-tended boat might accumulate.

Note that while some of the bits have shank detents that lock into the quick change mechanisms, the straight shanks still work (though a magnet stick may come in handy). Note too that Milwaukee’s latest M4 cordless driver looks like a possible improvement on the old model that I can’t seem to break, and that there is now a huge variety of Wera Bit-Check kits available —  one indication that I’m not the only one who thinks they’re easily worth the premium pricing.

Now, can I interest anyone in an old but unused-since-2009 Cruisair AC unit? In fact I have two, the other one completely assembled (and working fine) when easily extracted early in my Gizmo stewardship. I’ll bet that there’s a boat (or lake cabin) somewhere that could make good use of them because “different strokes for different folks.”

Similar Posts:


Navico Halo24 & Raymarine Quantum2 radars, Gizmo goes full Doppler
December 8, 2018

Helm ergonomics, Steve Dashew style
January 30, 2019

The Equation of Time, old time navigation know-how in the modern world
December 21, 2018

Garmin news: 8600 Series extends, BlueChart g3 includes Navionics, inReach integrates with MFDs & more
October 30, 2018

Ben Ellison

Ben Ellison

Panbo editor, publisher & chief bottlewasher from 4/2005 until 8/2018, and now excited to have Ben Stein as very able publisher, webmaster, and editing colleague. Panbo is going to the next level in 2019 and beyond.

4 Responses

  1. Ben, you have no idea how happy it makes me to see that even your tools have the light rust patina that I can never seem to beat 🙂 I dribble T9 on everything, and it works – but there always seems to be someplace I either miss, or gets rubbed off in use. I have a couple tiny ratchets/right-angle drives like your Wera, and the most used one is a right-angle screwdriver.

  2. Jim White says:

    Great information about tools. Do you recommend the Wera SAE or Metric set for most US applications including Cummins and Northern Lights? Thanks!

    • Ben Ellison Ben Ellison says:

      Jim, my boat requires both SAE and Metric. I don’t use wrenches or sockets on the (metric Volvo Penta) engine very much, but everything else — pumps, deck and hull hardware, radar mounts, etc. etc. — is mixed.

      Also, because the U.S. hull was finished out in Canada, she’s full of square drive screws, which I’ve come to love. But I also need Phillips, Hex, Security Hex, Torx, Security Torx, and Allen drives for various tasks. And there may still be a slotted screw or machine bolt somewhere, though I hope not 😉

  3. Capt. Woody says:

    Thank you for the insight regarding your tool choices. This week’s sweltering heat made me wish for a cool, breezy anchorage in Canadian water. Weeks like this give me a sense of gratitude that my family can rest in a cooled room. I once considered replacing a broken a/c unit with one of the small compact swamp coolers available for motor homes as an experiment (found them by searching for 12v evaporative cooler), but replaced it with a working unit. I am always looking for ways to cap a thru hull and it seems like a viable alternative to a/c on a boat since temperatures are moderate compared to those experienced on shore, but with climate changing I am grateful to have the extra cooling power, even at the expense of a thru-hull and the additional power consumption.
